BAXY cargo

DESIGNED FOR
INDIAN ROADS

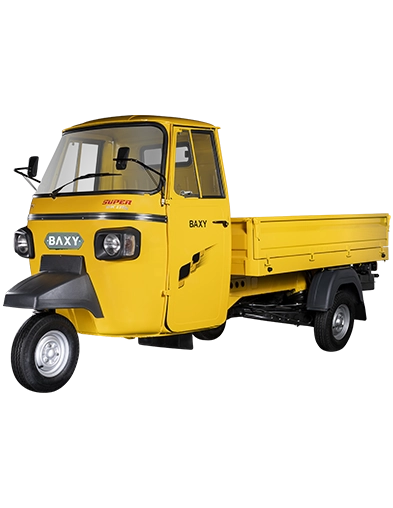

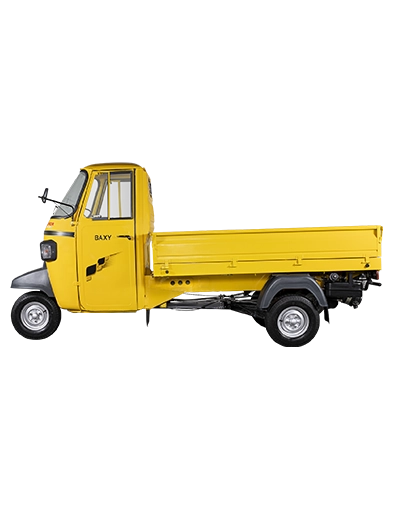

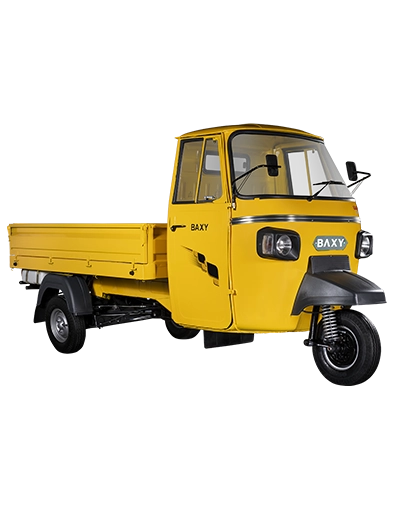

Model	BAXY Super King Diesel
Engine	Greaves Engine BSVI OBD II B
Displacement & Power	435cc, 5.7KW @ 3600 rpm
Fuel	Diesel
Max. Torque	19 Nm @ 2200 + 200 rpm
Tray Size (L x W x H) in mm	1985 X 1445 X 285 mm
Cargo Body	6.5 Feet
Pay Load	500+ KG
Ground Clearance	175mm
Warranty	3 Years Warranty*
Available Colors	Red, Blue & VG Green, White & Yellow
VIEW SPECIFICATIONS

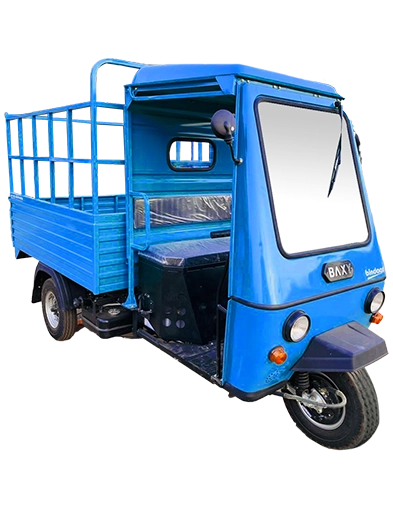

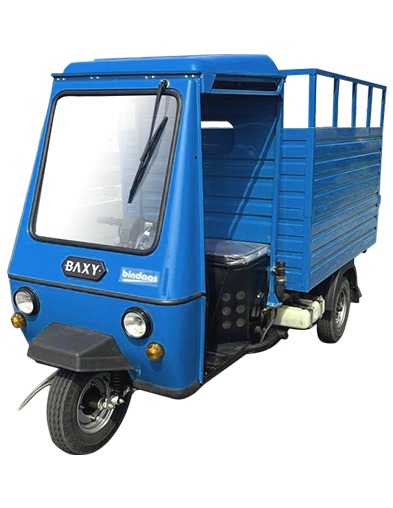

Model	BAXY Bindaas Diesel
Engine	Greaves Engine BS6 OBD II B
Displacement	435cc
Net Power (kW)	5.7 kW @ 3600 rpm
Net torque (Nm)	19 Nm @ 2200± 200 rpm
Fuel Tank Capacity (Litres)	10
Maximum speed of vehicle (km/h)	52
GVW (kg)	990
Kerb Weight (kg)	46
Seating Capacity (Incl. Driver)	Driver
Wheelbase (mm)	2170
Overall Width (mm)	1355
Overall Length (mm)	3365
Overall Height (mm)	1830
Tray Size (mm)	1705X1370X335
Ground Clearance (mm)	175
Suspension Front	Anti Drive Link with Single Shock Absorber
Suspension Rear	Integrated Rubber Spring with Dual Action Shock Absorber
Tyre (Front s Rear)	4.50X 10 8PR
Braking (Front s Rear)	Drum, Hydraulic
Available Colors	Sky Blue

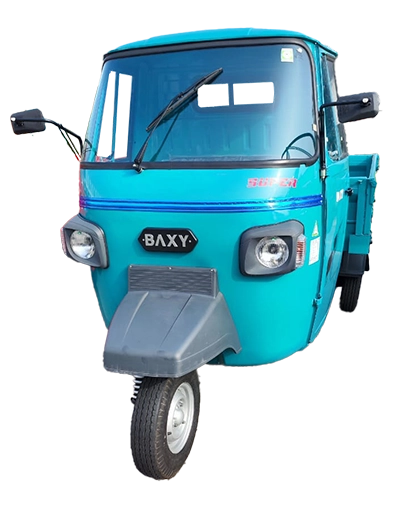

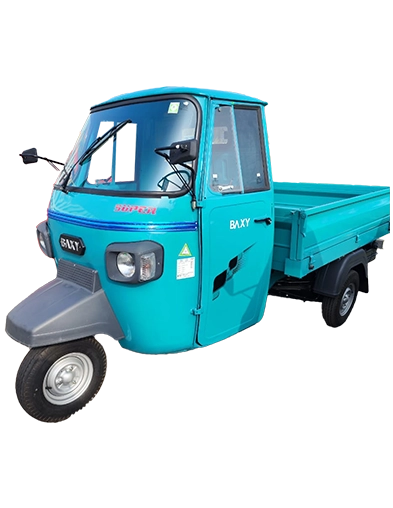

Model	BAXY Super Cargo Diesel
Engine	Greaves Engine BS6 OBDII B
Displacement	435cc
Net Power (kW)	5.7 kW @ 3600 rpm
Net torque (Nm)	19 Nm @ 2200± 200 rpm
Fuel Tank Capacity (Litres)	10.5
Maximum speed of vehicle (km/h)	55
GVW (kg)	990
Kerb Weight (kg)	473
Wheelbase	2100
Overall Width	1500
Overall Length	3172
Overall Height	1725
Tray Size (mm)	1690 X1475 X285
Cargo Body (Ft)	5.5ft / 6.5ft* (option available)
Payload (kg)	517
Ground Clearance (mm)	175
Suspension Front	Anti Drive Link with Single Shock Absorber
Suspension Rear	Integrated Rubber Spring with Dual Action Shock Absorber
Tyre (Front & Rear)	4.50X 10 8PR
Braking(Front & Rear)	Drum, Hydraulic
