| Model |

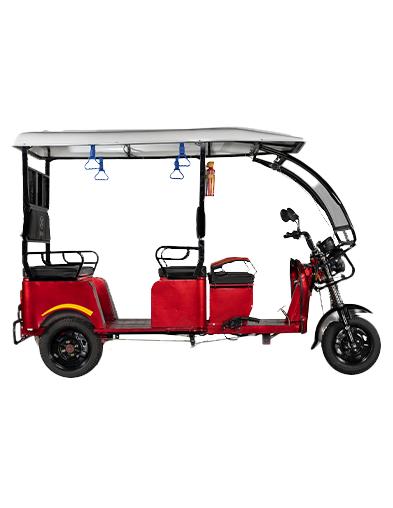

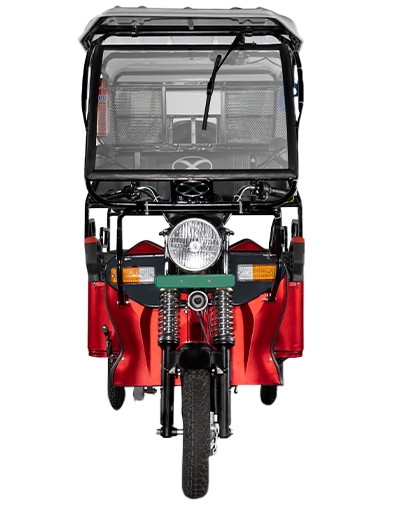

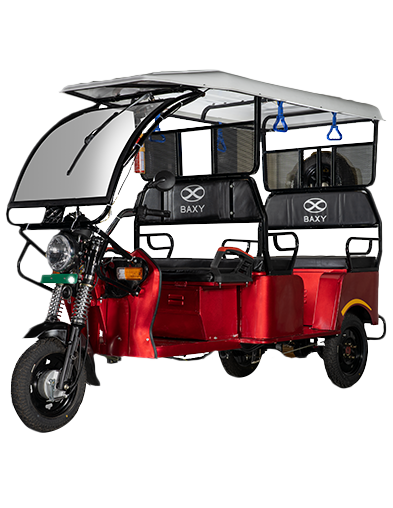

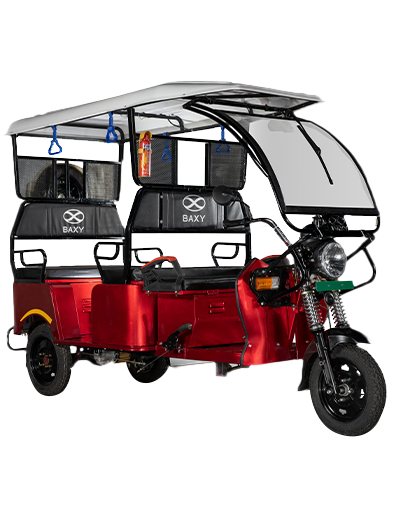

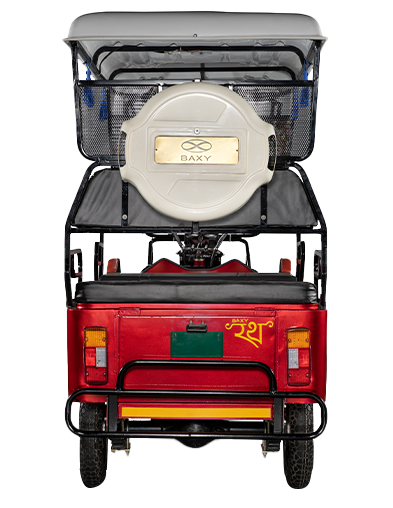

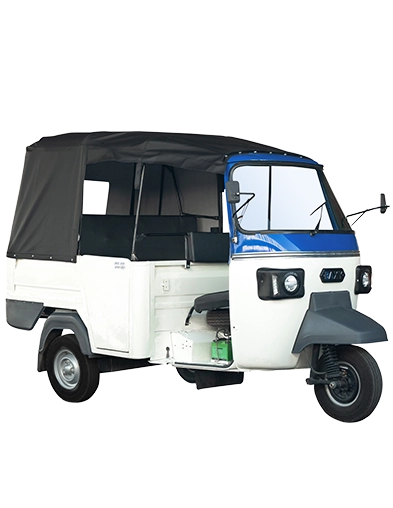

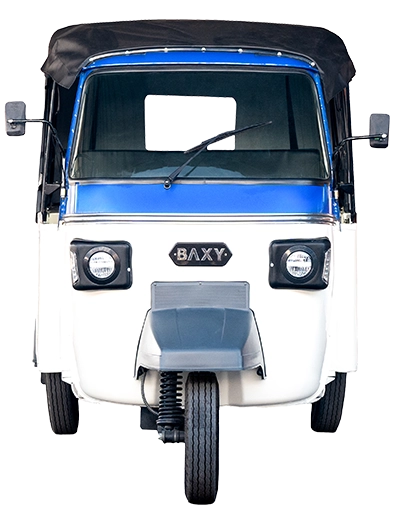

BAXY Lion |
| Battery Type |
Li-ion |
| Battery Capacity (kWh) |
15 |
| Motor Type |
PMSM |
| Gradeability (Climb Degree) |
21.20% |
| Maximum Power (KW) |
10* |
| Maximum speed (Km/hr) |
50 |
| Range (KM) |
180 to 200 km per charge (Based on load & road
condition) |
| Charging time |
5 Hrs. (0-80%) AC, 50-amp Charger. 1 Hr. (0-80%) DC,
20 0-amp Fast Charger |
| Controller |
350 A |
| Charger |
External charger, AC – Slow (*Fast Charging DC
available) |
| Front Suspension |
Anti Drive Link with Single Shock Absorber |
| Rear Suspension |
Integrated Rubber Spring with Dual Action Shock
Absorber |
| Brake Type |
Front - Drum/Rear - Drum/Parking - Hand Operated
Mechanical acting on rear wheel |
| Front Tyre |
4.50X10 8PR |
| Rear Tyre |
4.50X10 8PR |
| Wheelbase (mm) |
1940 |
| Length (mm) |
2970 |
| Width (mm) |
1480 |
| Height (mm) |
1935 |
| Min Ground Clearance (mm) |
200 |
| Seating Capacity |
D + 3/D + 5 |
| Gross Vehicle Weight (Kg) |
821 |
| Available Colors |
White, Green, Sky Blue & Grey
|
