BAXY CNG

DESIGNED FOR
INDIAN ROADS

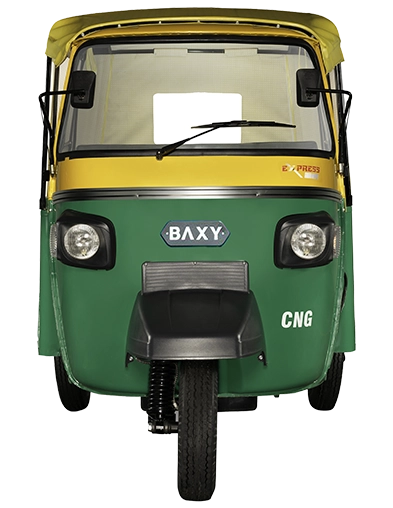

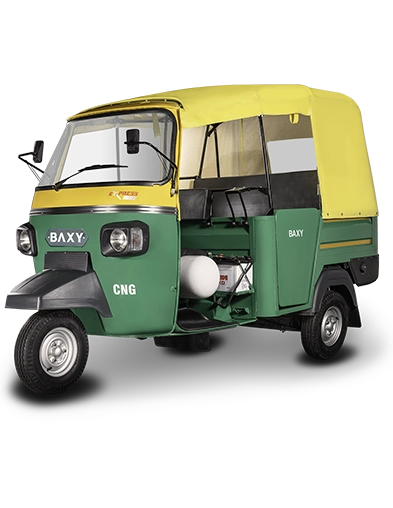

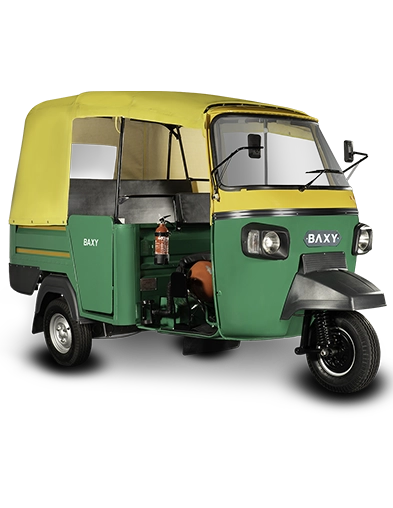

Model	Baxy Express CNG
Engine	G400 W VI Bi Fuel CNG
Displacement	395cc
Net Power (kW)	7.25 kW at 3400 ± 200 rpm
Net torque (Nm)	24.5± 5% Nm at 1600 – 2400 rpm
Fuel Tank Capacity (Litres)	30
Maximum speed of vehicle (km/h)	63
GVW (kg)	844
Kerb Weight (kg)	508
Seating Capacity (Incl. Driver)	D + 3
Wheelbase (mm)	1910 mm
Overall Width (mm)	1500
Overall Length (mm)	3025
Overall Height (mm)	1900
Ground Clearance (mm)	175
Suspension Front	Anti Drive Link with Single Shock Absorber
Suspension Rear	Integrated Rubber Spring with Dual Action Shock Absorber
Tyre (Front & Rear)	4.50X 10 8PR
Braking(Front & Rear)	Drum, Hydraulic
Available Colors	Green, Red & Yellow
VIEW SPECIFICATIONS

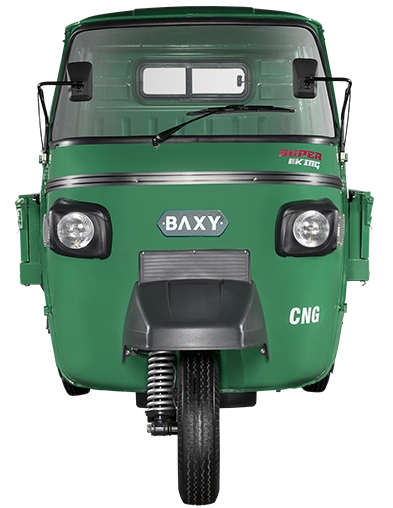

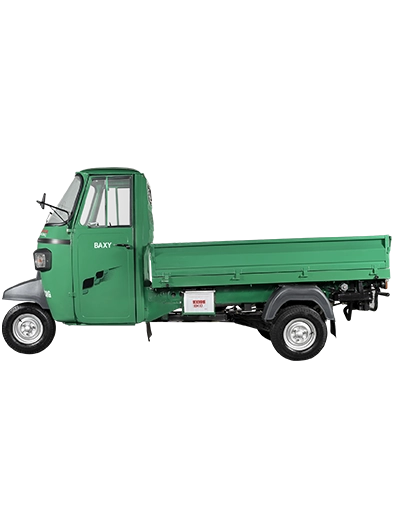

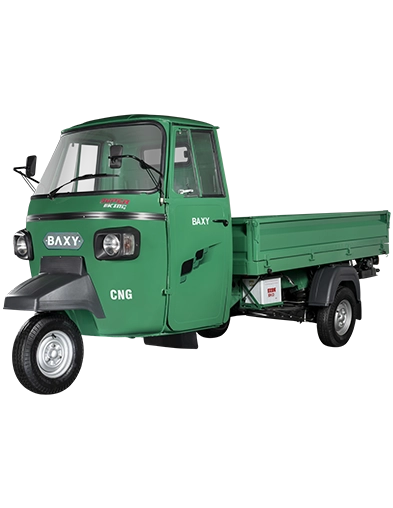

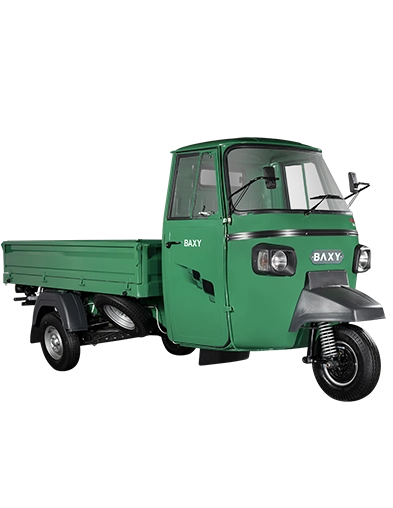

Model	Baxy Super King CNG Cargo
Engine	G400 W VI Bi Fuel CNG
Displacement	395cc
Net Power (kW)	7.25 kW at 3400 ± 200 rpm
Net torque (Nm)	24.5± 5% Nm at 1600 – 2400 rpm
Fuel Tank Capacity (Litres)	30
Maximum speed of vehicle (km/h)	63
GVW (kg)	990
Kerb Weight (kg)	579
Seating Capacity (Incl. Driver)	Driver
Wheelbase (mm)	2420 mm
Overall Width (mm)	1465
Overall Length (mm)	3510
Overall Height (mm)	1732
Tray Size (mm)	1948 X1400 X285
Cargo Body (Ft)	5.5ft / 6.5ft* (option available)
Ground Clearance (mm)	175
Suspension Front	Anti Drive Link with Single Shock Absorber
Suspension Rear	Integrated Rubber Spring with Dual Action Shock Absorber
Tyre (Front & Rear)	4.50X 10 8PR
Braking(Front & Rear)	Drum, Hydraulic
Available Colors	Green & Blue
