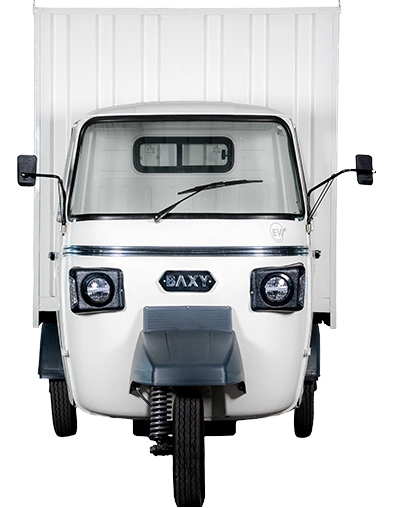

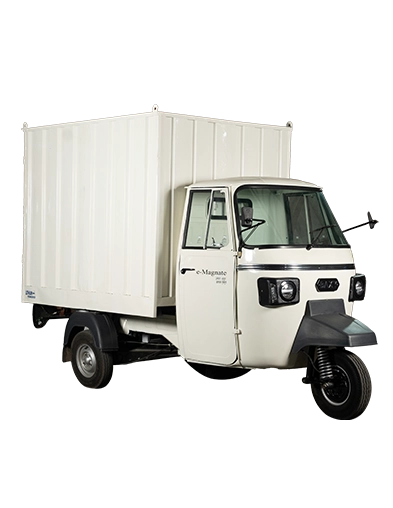

| Model Name |
BAXY E Magnate Delivery Van |
| Battery Type |
Li-ion |
| Battery Capacity (kWh) |
15 |
| Motor Type |
PMSM |
| Gradeability (Climb Degree) |
21.20% |
| Maximum Power (KW) |
10* |
| Maximum speed (Km/hr) |
50 |
| Range (KM) |
170 to 180 KM per charge (Based on load & road
condition) |
| Charging time |
5 Hrs. (0-80%) AC, 50 amp charger
1 Hrs.
(0-80%) DC, 200 amp Fast charger |
| Controller |
350 A |
| Charger |
External charger, AC – Slow (*Fast Charging DC
available) |
| Front Suspension |
Anti Drive Link with Single Shock Absorber |
| Rear Suspension |
Integrated Rubber Spring with Dual Action Shock
Absorber |
| Brake Type |
Front - Drum/Rear - Drum/Parking - Hand Operated
Mechanical acting on rearwheel |
| Front Tyre |
4.50 X 10 8PR |
| Rear Tyre |
4.50 X 10 8PR |
| Wheelbase (mm) |
2415 |
| Length (mm) |
3485 |
| Width (mm) |
1580 |
| Height (mm) |
2340 |
| Min Ground Clearance (mm) |
200 |
| Cargo box (mm) |
2015X1565X1600 |
| Gross Vehicle Weight (Kg) |
1210 |
| Kerb Weight (Kg) |
640 |
| Available Colors |
White |
|
